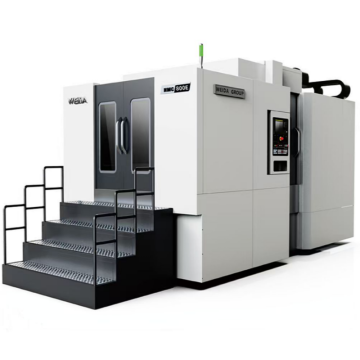

Discover the VNM1300 Vertical Machining Center, designed for precision, efficiency, and reliability. Elevate your manufacturing capabilities today!
Key Features
- Product Name Vertical machining center
- Service 24 hours after-sales services, Customized services, OEM services
- The VNM1300 Vertical Machining Center features a vertical frame structure . The column is rigidly mounted on the bed , while the spindle head moves vertically along the column (Z-axis) . The saddle travels longitudinally along the bed (Y-axis) , and the worktable moves transversely on the saddle (X-axis) .
- - Cross slide structure, inverted Y-column
- - Super rigidity of bed, column, slide, table and spindle box.
- - X, Y and Z guideways are roller linear guideways.
Technical Specifications
| Main specifications | Unit |
| Table size | mm |
| T-slot (Width-Qty-Distance) | mm |
| Max. table load | kg |
| X-axis travel | mm |
| Y-axis travel | mm |
| Z-axis travel | mm |
| Distance from spindle nose to table surface | mm |
| Distance from spindle axis to column surface | mm |
| Spindle taper | -- |
