WEIDA Machine
Maximize efficiency with the WBM-11FT Horizontal Machining Center. Experience precision engineering and enhanced productivity for your machining needs
Key Features

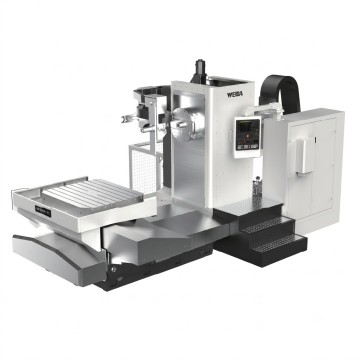

- HORIZONTAL MACHINING CENTER WBM-11FT
- Product Name HORIZONTAL MACHINING CENTER
- Service 24 hours after-sales services, Customized services, OEM services
- -The machine adopts a typical cross-slide layout with a fixed column and a side-mounted spindle headstock. The table moves along the cross-slide and is rotatable, while the boring spindle is telescopic.
- -The guideways are combining two linear guides and one boxway-surface guide. The X and Z axes use heavy-duty roller linear guides, while the Y axis utilizes a combination of hardened and ground guideways and imported rolling elements.
- -The spindle headstock is an integrated gearbox, ensuring high rigidity and high torque output.
Technical Specifications
| Specifications | unit |
| X-axis travel | mm |
| Y-axis travel | mm |
| Z-axis travel | mm |
| W-axis travel | mm |
| U-axis travel | mm |
| B-axis rotation range | Â |
| Distance from spindle axis to table surface | mm |
| Min.distance from boring axis nose to table center | mm |
| Table size | mm |
