Explore the China WBM-11FT Horizontal Machining Center for precise engineering solutions. Connect with top suppliers for reliable factory options today
Key Features
- China WBM-11FT Horizontal Machining Center - Top Suppliers & Reliable Factory Solutions for Precision Engineering
- Products Five Axis Machining Center CNC Milling Machine Automated Production Line CNC Lathe Vertical Machining Center Horizontal Machining Center Gantry Machining Center
- Product Name HORIZONTAL MACHINING CENTER
- Service 24 hours after-sales services, Customized services, OEM services

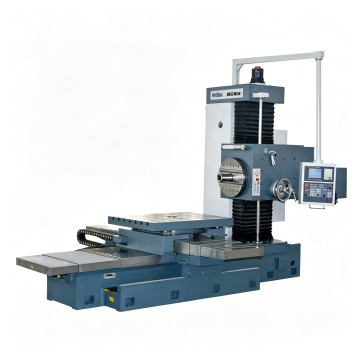

- The machine adopts a typical cross-slide layout with a fixed column and a side-mounted spindle headstock. The table moves along the cross-slide and is rotatable, while the boring spindle is telescopic.
- The guideways are combining two linear guides and one boxway-surface guide. The X and Z axes use heavy-duty roller linear guides, while the Y axis utilizes a combination of hardened and ground guideways and imported rolling elements.
Technical Specifications
| Specifications | Unit |
| X-axis travel | mm |
| Y-axis travel | mm |
| Z-axis travel | mm |
| W-axis travel | mm |
| U-axis travel | mm |
| B-axis rotation range | ° |
| Distance from spindle axis to table surface | mm |
| Min.distance from boring axis nose to table center | mm |
| Table size | mm |
