Explore the TCK63 Slant Bed CNC Lathe, designed for high precision and complex part processing. Ideal for manufacturers looking for efficiency and reliability
Key Features

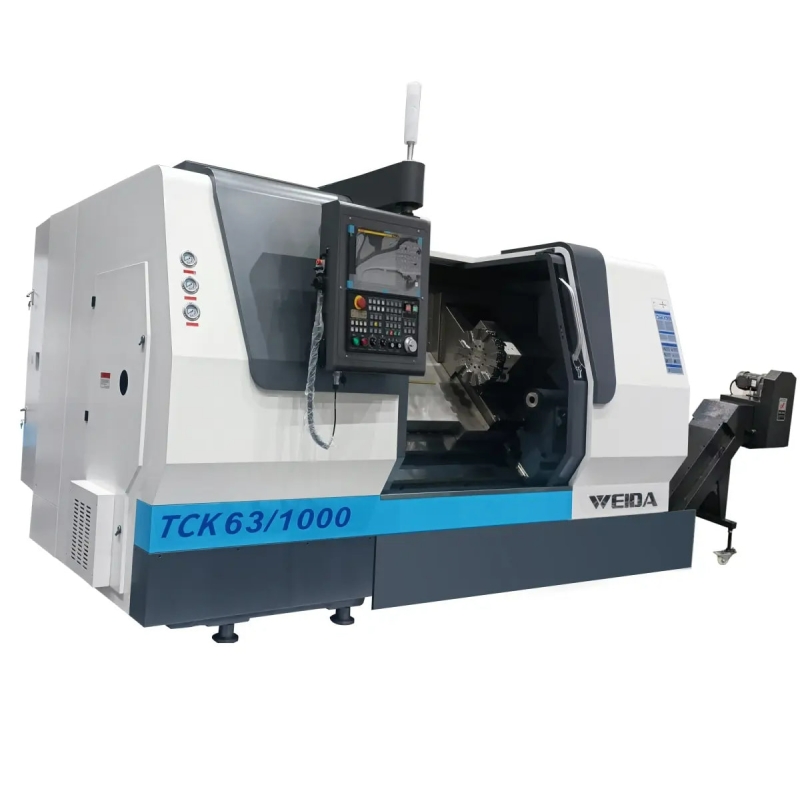

- TCK63 Slant Bed CNC Lathe - High Precision Machine from China Suppliers and Factory for Complex Part Processing
- Products Five Axis Machining Center CNC Milling Machine Automated Production Line CNC Lathe Vertical Machining Center Horizontal Machining Center Gantry Machining Center
- Equipped with a hollow hydraulic chuck and a hydraulic tailstock, the TCK63 enhances clamping efficiency, laying the groundwork for automated processing capabilities. As a reliable product from a leading China CNC lathe supplier and factory, the TCK63 CNC lathe is engineered to meet the demands of modern manufacturing.
- Service 24 hours after-sales services, Customized services, OEM services
- The TCK63-100 features an integral slant 45° casting with linear guideways, whereas the TCK63-150/200/300 models use an integral slant 30° casting with linear guideways to optimize stability and chip removal for longer processing lengths.
- The TCK63-100 model supports a maximum processing length of 1000 mm. The TCK63-150/200/300 models offer extended processing lengths of 1500 mm, 2000 mm, and 3000 mm depending on your specific turret configuration.
Technical Specifications
| Specifications | Unit |
| Max.swing diameter over bed | mm |
| Max.processing diameter | mm |
| Max.swing diameter over carriage | mm |
| Max. processing length | mm |
| Spindle nose type (Inner taper) | type |
| Spindle speed | r/min |
| Spindle motor power | kw |
| Spindle bore | mm |
| Bar diameter | mm |
