BODOR Machine

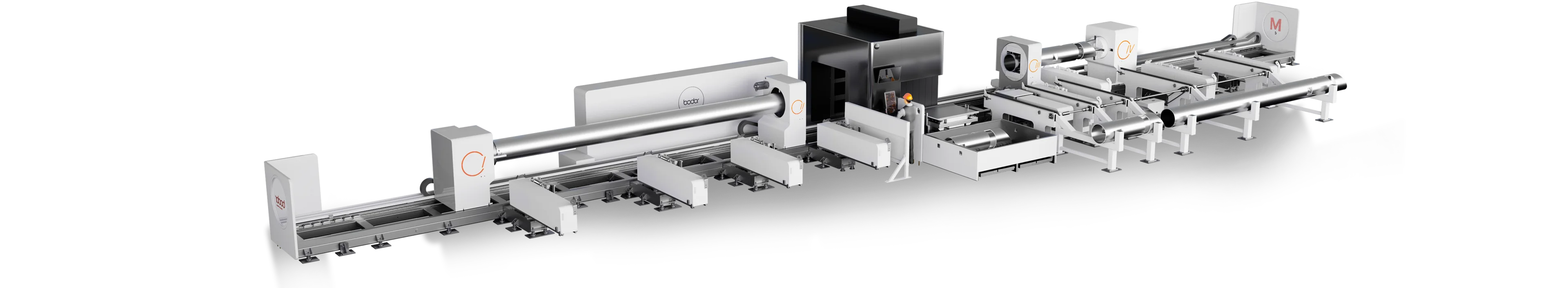

Discover a high-end laser cutting product along with its intelligent automation process. Equipped with 4 chucks, M5 aims to produce quality cuts with maximum productivity and zero excess materials.
Key Features
- Combo sheet & tube laser cutting machines
- Special profile laser cutting machines
- Discover a high-end laser cutting product along with its intelligent automation process. Equipped with 4 chucks, M5 aims to produce quality cuts with maximum productivity and zero excess materials.
- Fulfill diverse, hard-core cutting needs. Ideal for heavy metal tube processing, M5 gives you the ability to cut tubes with diameters up to 530 mm.
- Minimize manufacturing waste from the source. During operations, M5 will help you utilize every piece of material to the largest extent possible, reducing waste and improving cost-effectiveness.
- Provide a secure operating environment. M5’s 4-chuck mechanism ensures high-quality cutting without manual intervention, ensuring a hands-free operating environment with lower human costs.
Technical Specifications
| Laser output power | 12000W / 6000W |
| Chuck quantity | 4 |
| Effective square tube cutting scope | □60*60-□530*530mm |
| Rectangular tube edge length | 80mm-510mm |
| Effective round tube cutting diameter | Φ80-Φ510mm |
| Max. machinable tube length | 12000mm |
| Max. chuck rotating speed | 40r/min |
| X/Y-axis positioning accuracy | ±0.05mm/m |
| X/Y-axis repositioning accuracy | ±0.03mm |
| Max. tube weight | 2500kg |
| Laser output power | 4 |
| Max. chuck rotating speed | ±0.05mm/m |
